TECHNICAL ISSUEs
Radio and electronics


Introduction

This page was constructed for sharing interesting ideas, tests and useful practical sollutions.



Beszámolók régi katonai berendezések amatőr használatáról [Hu]
 R-104M -- trx 1,5-4,25 MHz   [pdf]  Open
 R-108M -- FM trx 28-36,5 MHz   [pdf]  Open
 R-310   -- rx 1-25 MHz   [pdf]  Open
 R-326   -- rx 1-20 MHz   [pdf]  Open
    Open

FERYSTER (lengyel) toroid mag alkalmazása QRP teljesítményekre

A kalkuláció bemutat egy 1:4-es lineáris átvitelű illesztőtranszformátort és egy lineáris átvitelű 1:1-es áramfojtót 20 W teljesítményre az 1-30 MHz-es frekvenciatartományban. A dokumentumot megtalálja itt.

#43 material toroid inductance calculation

This new page summarizes the principle of #43 material toroid inductance calculations offering detailed data on permeability in function of different frequencies. To visit page click here. The language is Hungarian though you can use table and formulas given for a serial RL model calculation.

HI TECH from 1958

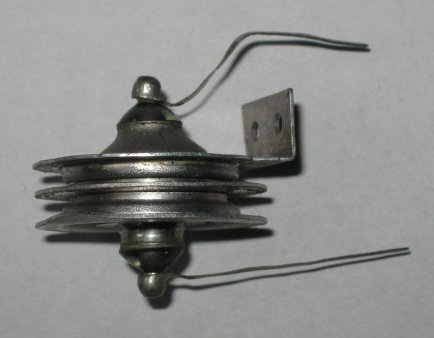

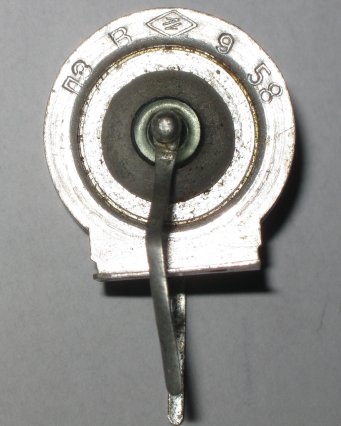

Russian AF power transistor - manufactured September, 1958. It is still perfect as to measurements concerned.

Type: Π3B (P3V)

P3V

P3V

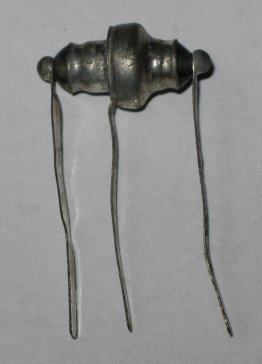

Russian AF small signal transistor - manufactured August, 1958. Transistor effect has already been lost.

Type: Π2A (P2A)

P2A

P2A


Audio Frequency CW Filter Project

This project used to be born for using transceivers without IF CW filter in CW mode more effectively. Even it is also very effective when the trx has a narrow band IF filter.

The audio CW filter is not a replacement of a good IF CW filter but it helps to receive weak CW signals much better having only a wide (SSB) IF bandwidth.

The principle is the use of negative feedback. On resonant frequency (suggested to be 800 Hz or near) the amplification is on the maximum. When the audio signal differs from the resonant frequency, the amplification cuts back according to the fall of the resonance curve. This means a high gain on the top of curve. The bandwidth is about 10 Hz , -3 dB but that does not mean you do not hear far signals. Personally it is an advantage for me because I can follow the events on the neighboring frequencies while I am operating with my partner station or searching the band.

The bandwidth can be regulated with a variable resistor (VR2). VR1 compensates some noise and can as well be used for a limited volume control. The input comes from my trx volume control so I use the volume knob there. To change for wideband mode I use the trx audio output so there is no switch over from CW to wideband facility built in the AF filter.

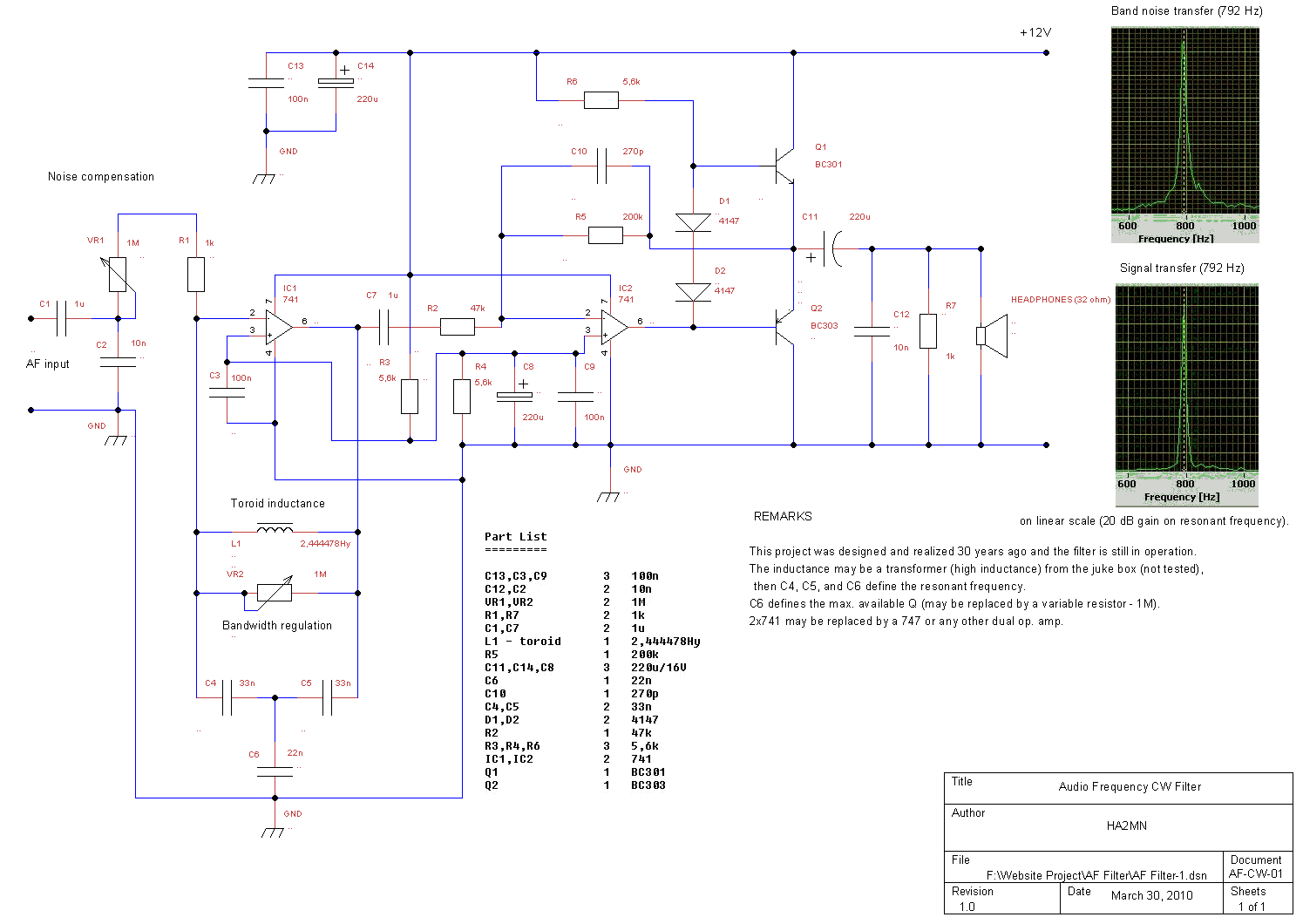

The circuit diagram can be found here. There is a sample audio clip here showing reception while I am changing the bandwidth. If you listen to it carefully you will hear how an almost unreadable station gets to be heard much better and his/her partner station is not using the same frequency (about 20-40 Hz away from it). By the way, I no longer use heavy headphones to make my ears pain in long operations. Instead I use my mp3 player earphones, the best of those I have ever tried.

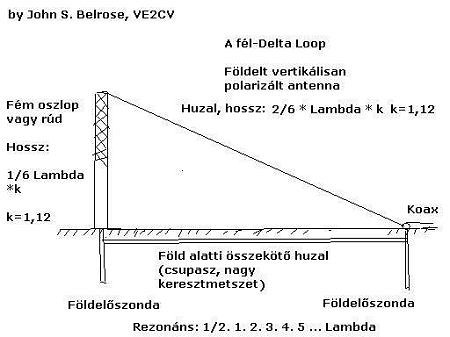

Field or backyard antenna

This is a half Delta Loop. Needs good grounding. Resonant on 1/2, 1, 2, 3, and so on lambda.

HALF DELTALOOP

.
